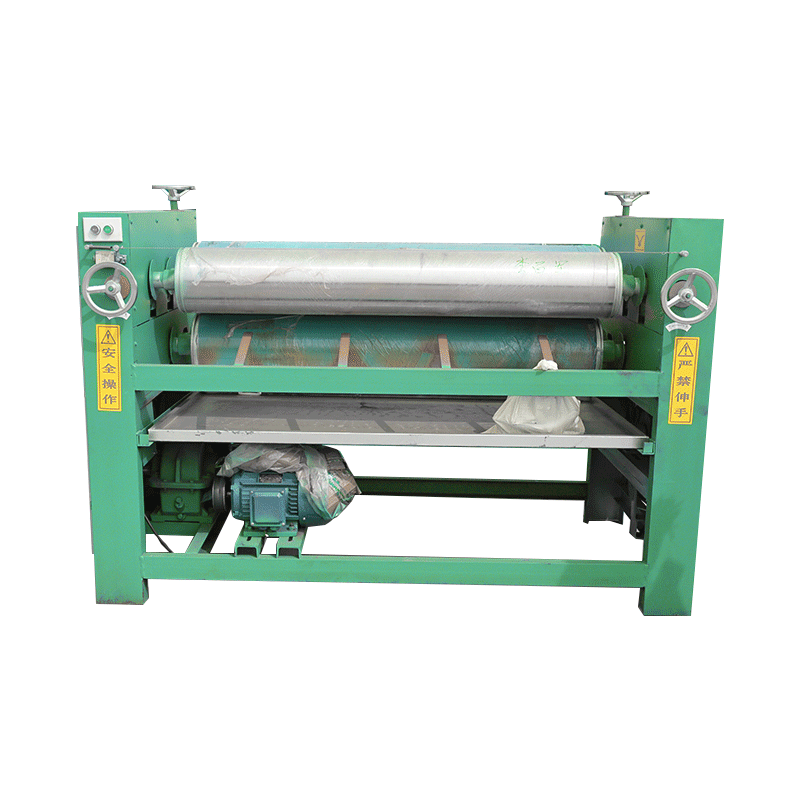

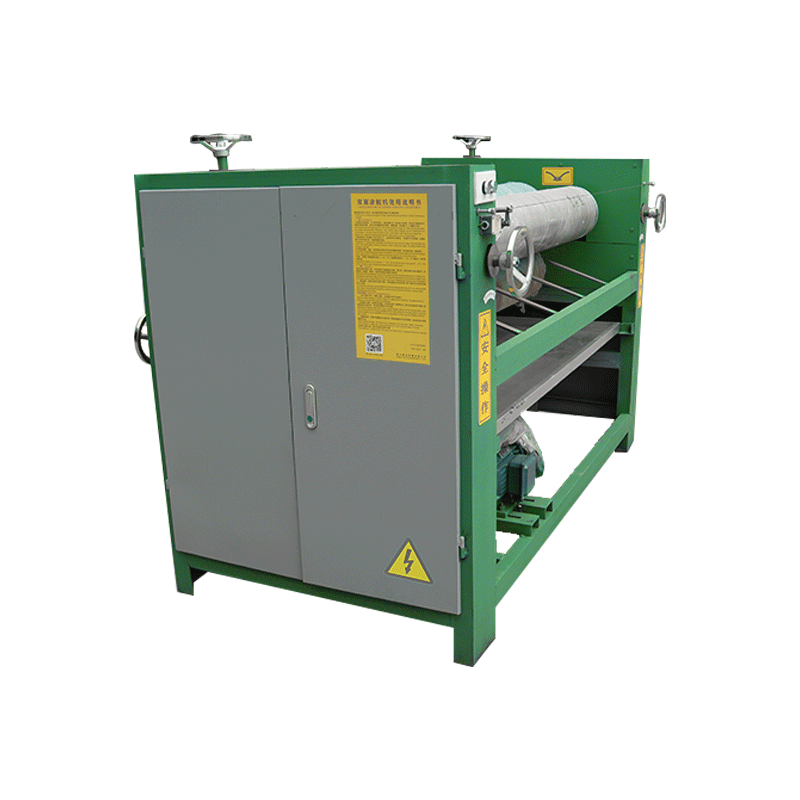

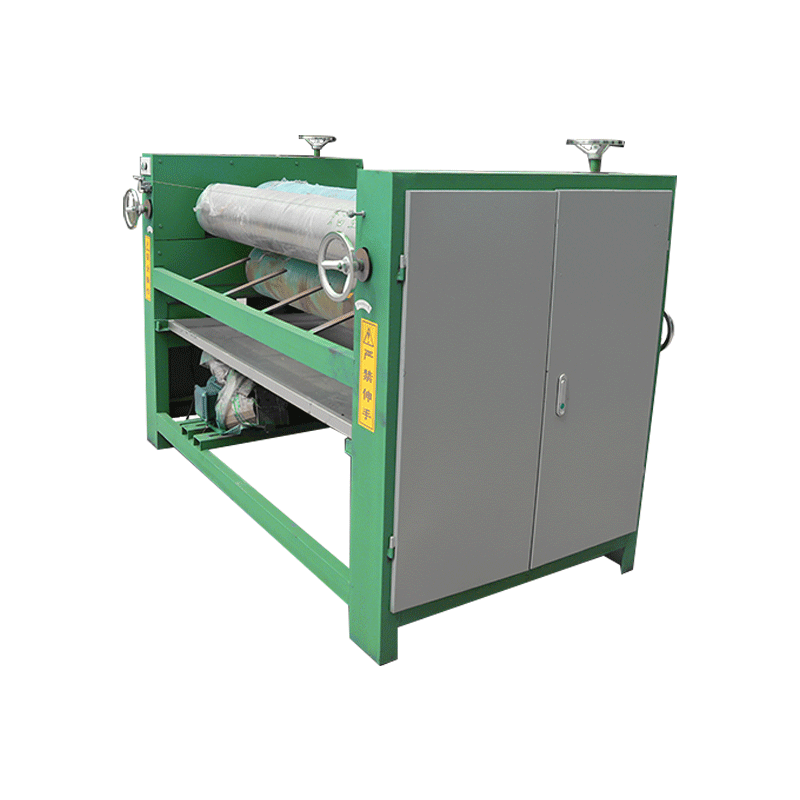

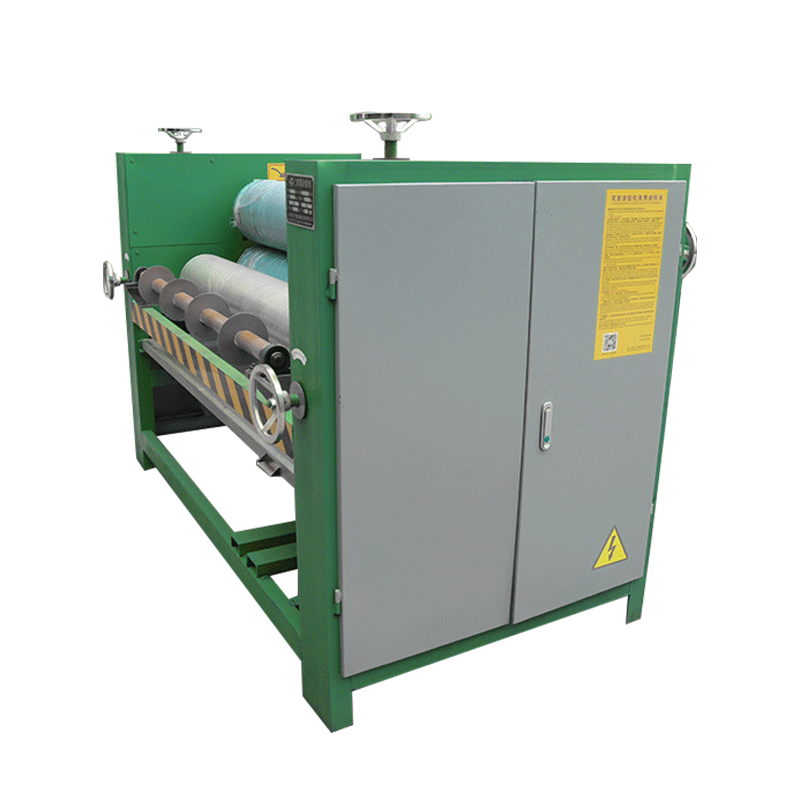

Glue Spreading Machine
Product Introduction
1.The rubber roller is natural rubber.It has high hardness,so it is very durable,excellent oil resistance,high wear resistance,good heat resistance and strong adhesion.
2 .The steel roller can be adjusted back and forth to control the amount of glue.The rubber roller can be adjusted up and down to control the gap.
3. Using DELIXI brand travel switch, longer service life, more stable.
4FT Glue Spreader | 8FT Glue Spreader | |||||||
Single Side | Double Sides | Single Side | Double Sides | |||||
Max spreading width | 1400mm | 1400mm | 1400mm | 1400mm | 2700mm | 2700mm | 2700mm | 2700mm |
Diameter of rubber | 245mm | 410mm | 245mm | 410mm | 310mm | 410mm | 310mm | 410mm |
Diameter of steel roller | 275mm | 275mm | 275mm | 275mm | 275mm | 275mm | 275mm | 275mm |
Number of roller | 3pcs | 3pcs | 4pcs | 4pcs | 3pcs | 3pcs | 4pcs | 4pcs |
Max working thickness | 60mm | 60mm | 60mm | 60mm | 60mm | 60mm | 60mm | 60mm |
Output Speed | 25-35m/min | 40-60m/min | 25-35m/min | 40-60m/min | 30-40m/min | 40-60m/min | 30-40m/min | 40-60m/min |
Motor Power | 4KW | 4KW | 4KW | 4KW | 5.5KW | 5.5KW | 5.5KW | 5.5KW |
Weight | 1.5Ton | 1.6Ton | 2.1Ton | 2.2Ton | 4.1Ton | 4.2Ton | 5.1Ton | 5.2Ton |
Overall Dimensions | 2200mm*1500mm*1600 mm | 3200mm*1500mm*1600 mm |
