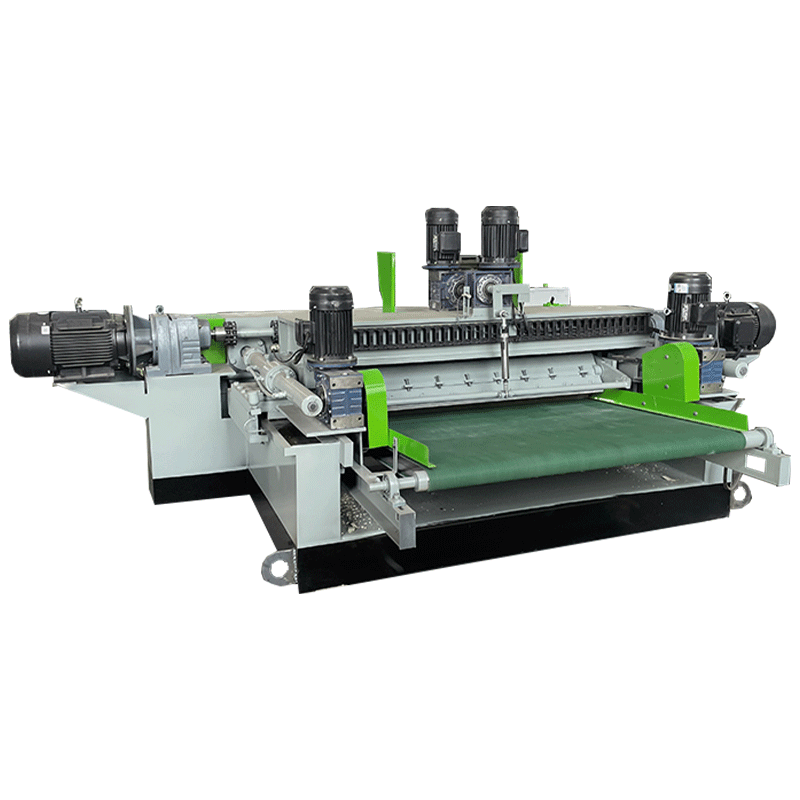

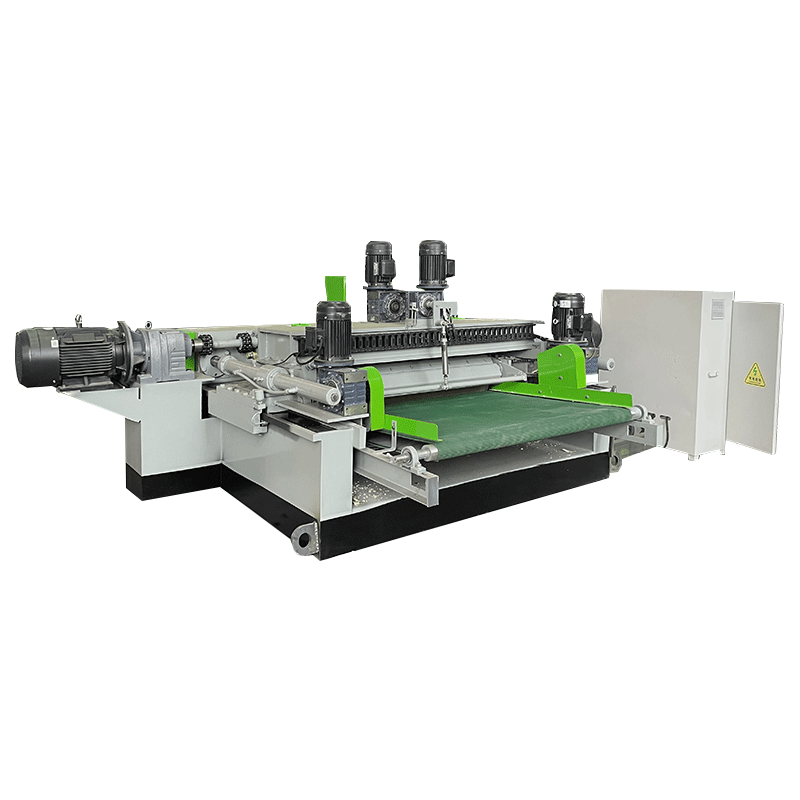

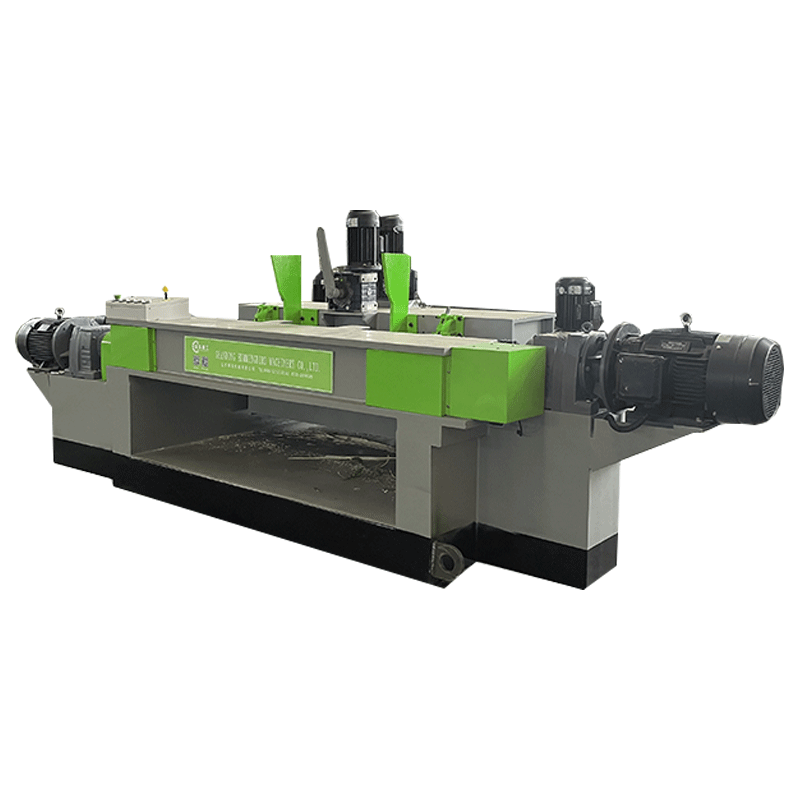

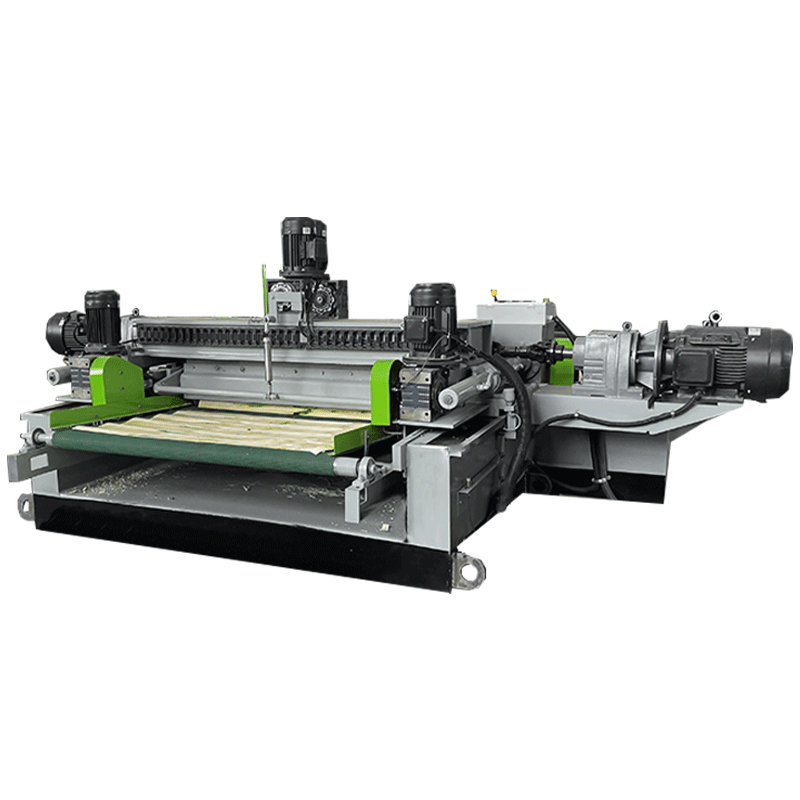

8 Feet Spindle-Less Veneer Peeling Machine
1.CNC screen, English language,convenient adjust veneer thick-ness,width.

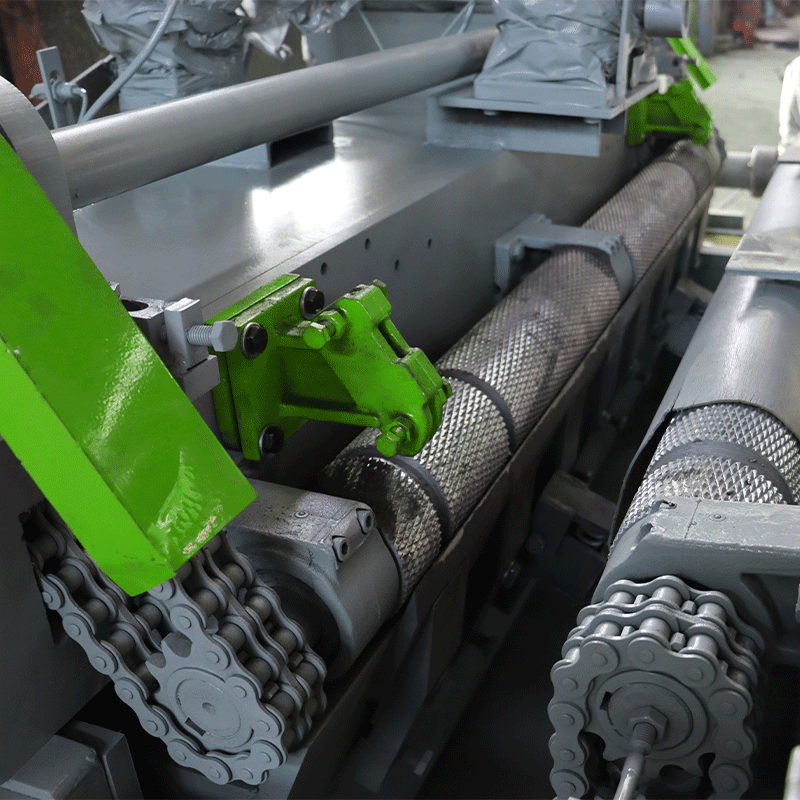

2.Using cross-roller,the left core diameter is small,improve wood utilization.
3.Using accurate feeding screw,screw pitch is very small,make sure veneer thickness accurate.
4.Motors and frequency invertor use big power,make sure offe powerful energy to machine.
Model | HBXQ-811A |
Processing Length | 2600m |
Max. Processing Diameter | 600mm |
Remaining Core Diameter | 32mm |
Rotary Cut Thickness | 0.15mtn-3mm |
Line Speed | 30m/min-110m/min |
Single Roll Motor Power | 1lkw*2=22kw(frequency conversion) |
Double Roll Motor Power | 1lkw*2=22kw(frequency conversion) |
Feed Motor Power | llkw(servo) |
Clipper Power | 4kw(servo) |
Conveyor Power | 2.2kw |
Total Power | 61.5kw |
Overall Dimension(L*W*H) | 5100*2300 *1800mm |
Weight | 12Ton |
