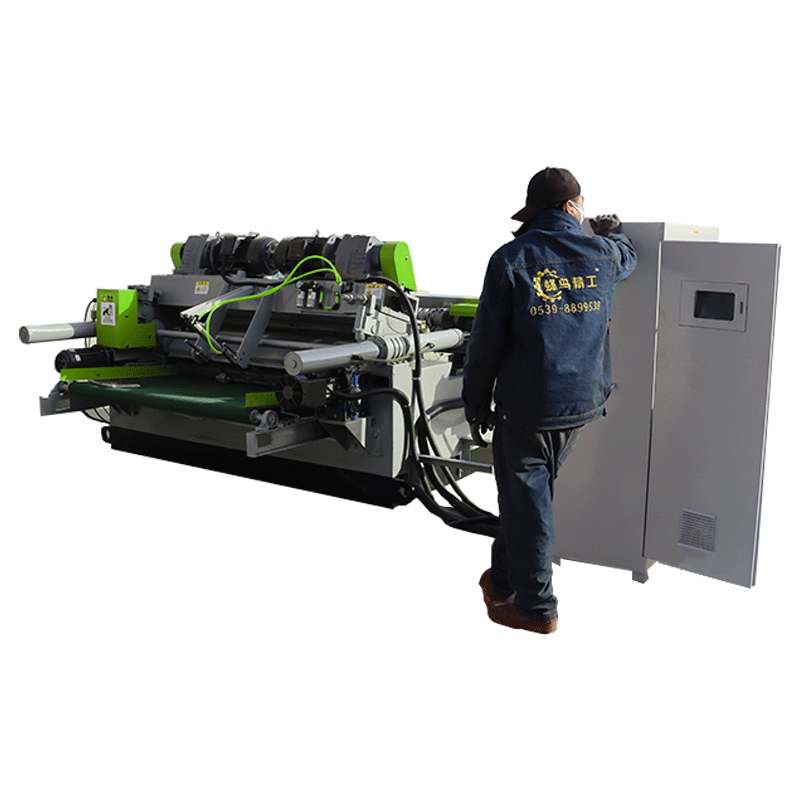

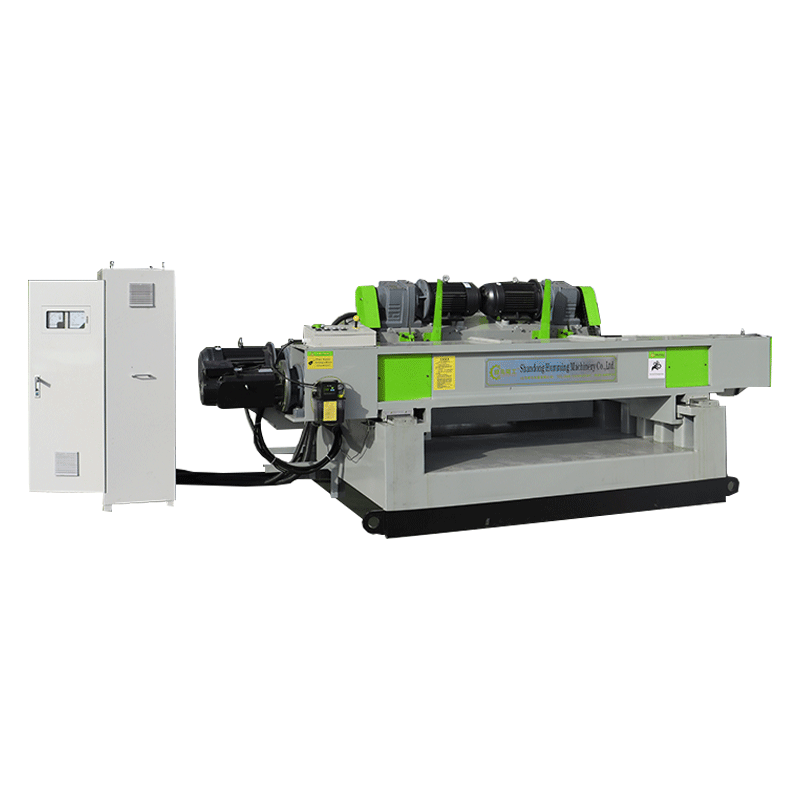

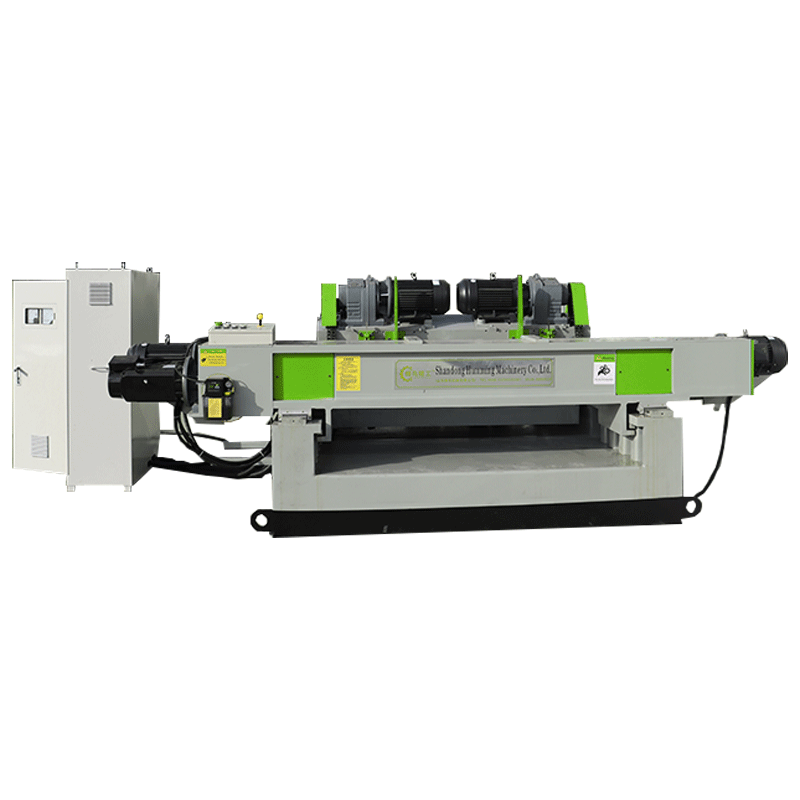

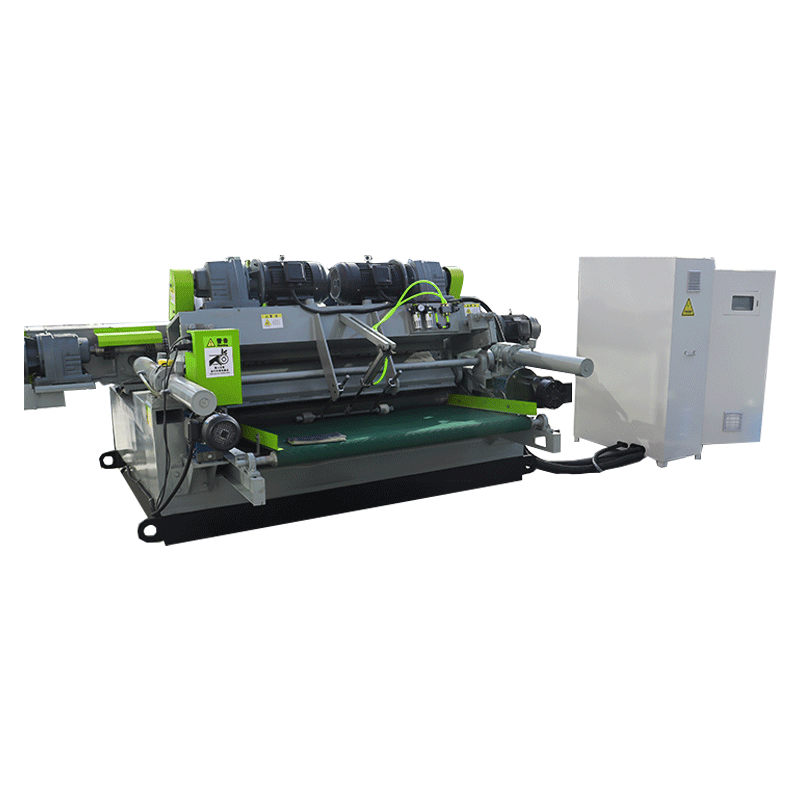

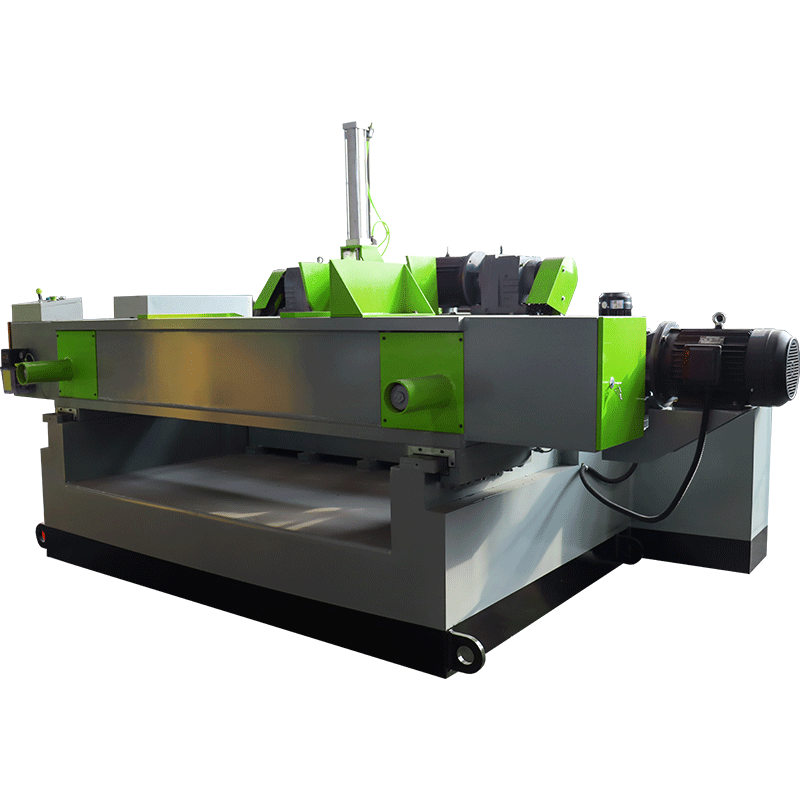

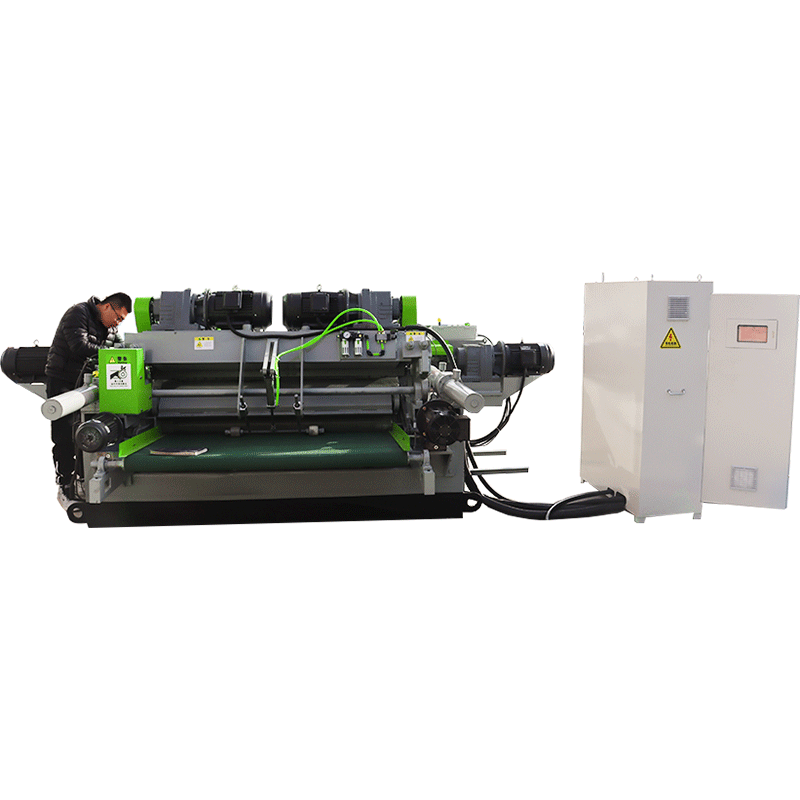

4 Feet Spindle-Less Veneer Peeling Machine
Product Introduction
1.Oil-immersed lead screw to ensure its service life,more durable, wear oil window at a glance.
2.Electroplating roller
All peeling rollers are quenched and electroplated to increase the- hardness and service life of the peeling rollers.
3.The oil pump automatically alarms for oil shortage,and automat-ically lubricates the guide rail in time according to the usage.
Model | HBXQ-7115C |
Timber length | 1300mm |
cutting diameter | 500mm |
Core diameter of remaining | 25mm |
Thickness range | 0.4-4mm |
Peeling speed | 65m/min |
Single roller motor power | 11kw |
Double roller motor power | 7.5KW*2 |
Feeding motor power | 11KW (servo motor) |
cutting knife motr power | 2.2KW (AC motor) |
Conveyor motor power | 1.5KW |
Auto thump remaining wood core motor | 1.5KW |
The last veneer press motor | 1.1KW |
Total power | 43.3KW |
Single roller reducer model | R87 |
Double roller reducer model | R87 |
Feeding reducer model | R87 |
Cutting knife reducer model | RV90 |
Conveyor reducer model | RV90 |
Screw diameter | 70mm |
Peeling knife size | 1400*130*12.7 mm |
Overall dimension | 3500*1900*1600 mm |
Weight | 5Ton |
