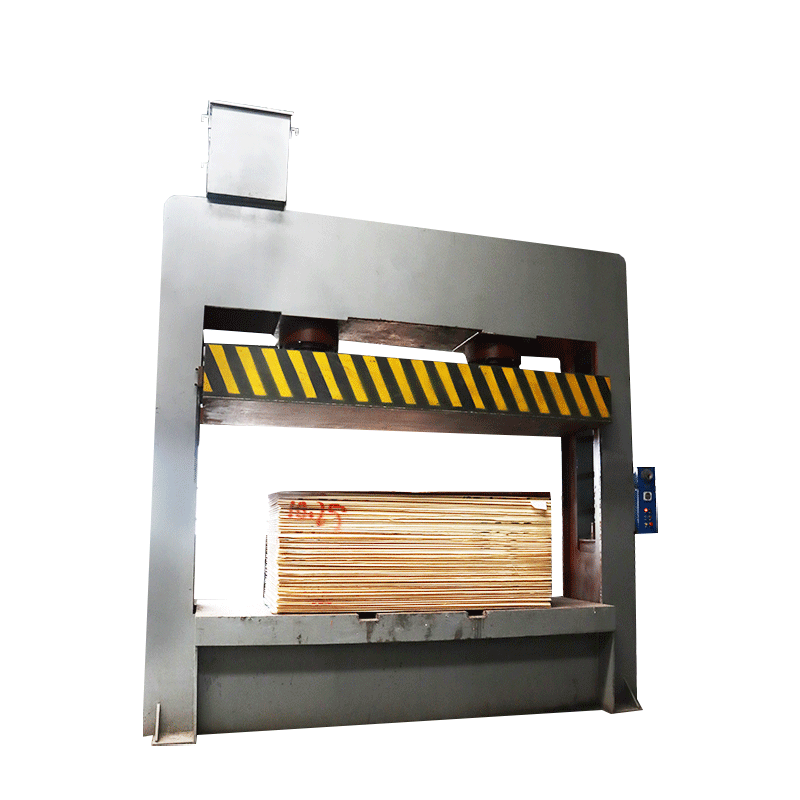

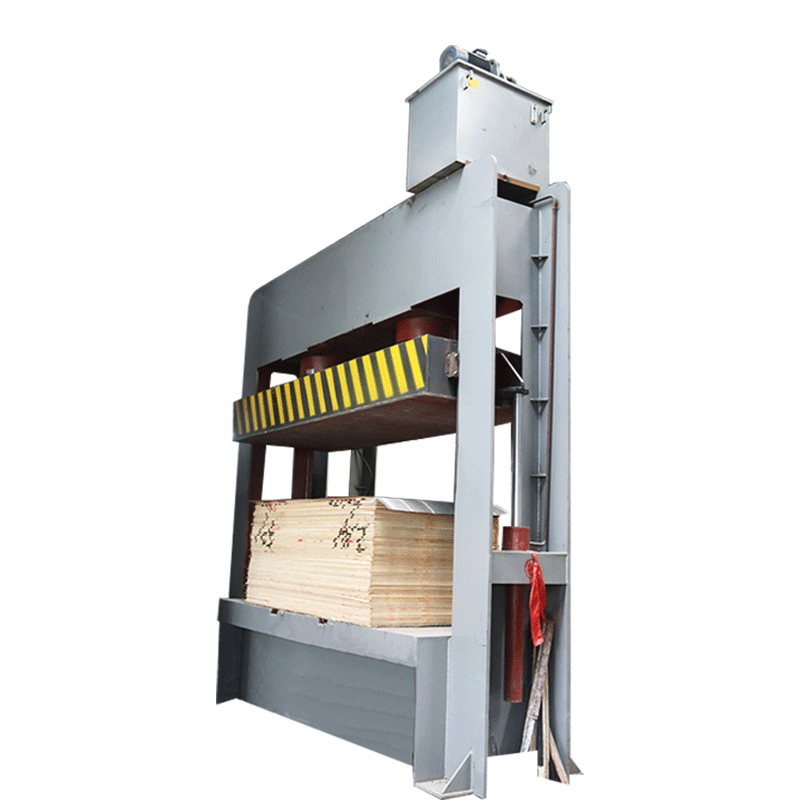

Cold Press Machine
Cold Press Machine
Product Introduction
Remark：Can be customized according to customer requirements.
| Model | HBLY-6400 |
| Nominal Pressure | 400T |
| Opening Distance | 1800mm |
| Motor Power | 7.5kw+1.5kw |
| Working Table Size | 1370*2700mm |
| Cylinders Diameter | 2pcs*φ320+2pcs*φ80 |
| Cylinders Stroke | 800mm |
| Board Feeding Direction | Transverse |
| Composite Frame | Assembled |
| Upper And Bottom Beam | 900mm |
| Middle Beam | 400mm |
| Frame Thickness | 30mm |
| Dimension(L*W*H) | 2700*1370*3700mm |
| Weight | 13Ton |
